n8n Lead Automation: A Webhook-to-Booking Workflow Guide

An n8n lead automation workflow takes a new lead from your form, validates and enriches it, creates or updates the contact in your CRM, sends a compliant first response within about a minute, and pushes the lead toward a booked appointment, with alerts when something breaks. Most tutorials stop at "webhook to CRM." This guide covers the full eight-stage chain plus the parts they skip: webhook security, response mode, n8n licensing for agencies, self-hosted versus Cloud, and SMS compliance with A2P 10DLC.

This is general information, not legal advice. Have counsel review your consent language and messaging program.

Why build lead follow-up in n8n

n8n is a workflow automation tool that connects forms, CRMs, messaging and AI services with visual nodes, and can be self-hosted or run on n8n Cloud. For lead follow-up, its strength is that you can chain capture, qualification, CRM updates, messaging and booking in one place, and see every run.

The business case is response speed. Our guide to speed to lead explains what the research says about responding quickly and how to measure your current response time. Automation will not fix a slow sales process on its own, but it closes the gap between "form submitted" and "someone engaged."

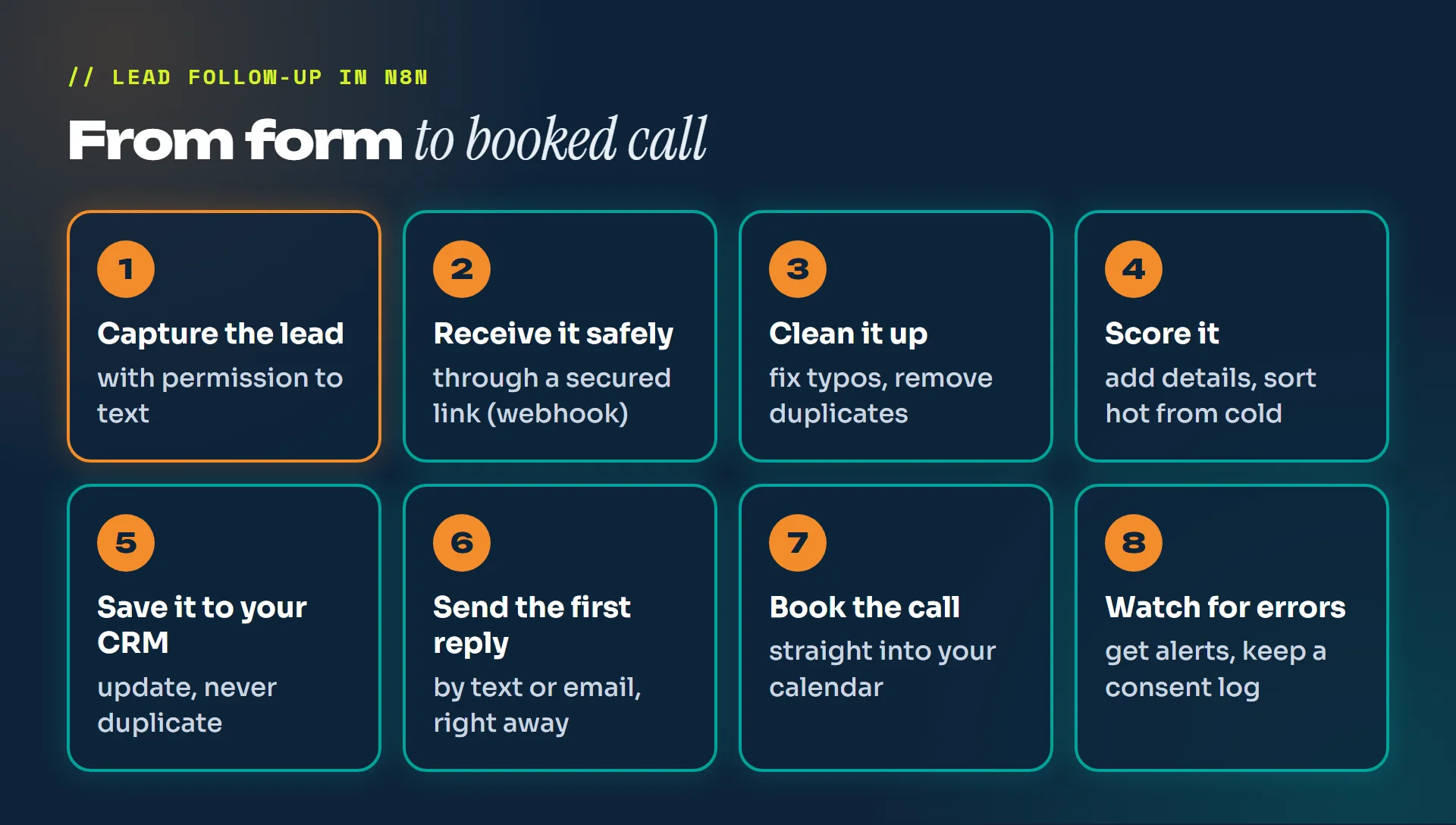

The 8-stage workflow architecture

Here is the full chain at a glance, then each stage in detail.

Stage	n8n building blocks	Output
1. Capture	Website form, Facebook Lead Ads trigger or n8n Form	Lead data plus SMS consent flag
2. Receive	Webhook node (POST, header auth, respond Immediately)	Fast acknowledgement to the form
3. Clean	Set/Code nodes, dedupe	Normalized record, phone in E.164
4. Qualify	HTTP Request and/or LLM classification, IF/Switch	Fit, urgency and route
5. CRM	CRM node or HTTP Request (upsert)	Contact and deal created or updated
6. First response	SMS (only if consented) via registered 10DLC, plus email	Message within about 60 seconds
7. Booking	Cal.com/Calendly link or AI voice callback	Appointment on the calendar
8. Errors and logging	Error Trigger workflow, Slack/email	Alerts plus consent audit trail

Stage 1: Capture the lead with consent

Your source can be a website form posting to a webhook, n8n's Facebook Lead Ads trigger, or an n8n Form. Whatever you use, collect only what you need to route the lead, and include a separate, unchecked SMS consent checkbox. Practitioner guidance: keep it optional so consent is freely given.

Example wording to adapt with counsel:

☐ Yes, I agree to receive text messages from [Business Name] about my request and appointments. Message frequency varies. Msg & data rates may apply. Reply STOP to opt out, HELP for help. See our [Privacy Policy].

The checkbox should name your brand, describe message frequency, include "Msg & data rates may apply" and "Reply STOP to opt out," and link to your privacy policy. Twilio rejects 10DLC campaigns when the website call to action lacks opt-in wording or when sample messages show no consent (Twilio Support).

If you are deciding how many fields to ask for, our guide to multi-step lead qualification forms covers how to collect qualification data without hurting completion.

Stage 2: Receive with a secured webhook

The Webhook node has separate Test and Production URLs. The Production URL only works when the workflow is published, so make sure your live form points to Production, not Test (n8n Webhook docs).

Security options built into the node:

• Authentication: Basic, Header or JWT. Header auth with a long random secret is the simplest for most form tools.
• IP allowlist: requests from other IPs receive a 403. Useful when your form provider posts from fixed IPs.
• Payload limit: the maximum payload is 16 MB, adjustable on self-hosted instances via N8N_PAYLOAD_SIZE_MAX.

All from the n8n Webhook docs. On top of that, practitioner guidance: add a hidden honeypot field and basic validation to the form so obvious bots never reach the webhook.

Choose the right respond mode

The Webhook node can respond "Immediately" (returning "Workflow got started"), "When Last Node Finishes," or through a Respond to Webhook node. If the workflow errors before responding, the caller gets a 500 error (n8n Respond to Webhook docs).

For lead capture, respond Immediately. Your visitor sees a fast confirmation, and a failure in enrichment or CRM steps will not show them an error page. Your Error Trigger (Stage 8) catches those failures instead.

Stage 3: Clean and dedupe

Trim whitespace, standardize name casing, lowercase emails, and normalize phone numbers to E.164 format (for example, +13125550123). Then check whether this person already exists, by email or phone, so a double submission does not create two contacts or send two texts.

Stage 4: Enrich and qualify

Apply simple, explicit rules first: is the ZIP code in your service area, does the stated budget fit, how urgent is the request? You can add an HTTP Request to look up data, or an LLM classification step to categorize free-text descriptions ("water heater leaking" becomes urgent plumbing).

Keep the LLM's job narrow: classify into a fixed list of categories and return structured output. Anything it cannot classify should route to a person, not a guess.

Stage 5: Upsert into the CRM

Use an upsert (update if exists, create if not) for the contact, then create a deal or opportunity with the source, qualification result and the consent fields. Store the consent flag on the contact itself, not just in the workflow, so every other tool that messages the lead can check it.

Stage 6: Send the first response

Send an email to every lead. Send an SMS only when the consent field is true, and only through a number tied to an approved A2P 10DLC campaign (covered below). Aim for both to go out within about 60 seconds of submission.

Make the message specific: reference the service they asked about and give one clear next step, such as a booking link.

Stage 7: Book the appointment

Include a Cal.com or Calendly link, prefilled with the lead's details if your tool supports it. For phone-first businesses or high-intent leads, an AI voice callback can confirm details and book. Callbacks with an AI voice have their own TCPA consent requirements, covered in our guide to AI voice agents for inbound lead qualification.

Stage 8: Alert on errors and log consent

Create a separate workflow with an Error Trigger that posts to Slack or email whenever the lead workflow fails, including the execution link and the lead's ID. A named person should own these alerts.

Log the consent record with each lead: the consent timestamp, the submitter's IP address and the form version (so you can show exactly what wording they agreed to). If a lead later revokes consent, consumers can do so "by any reasonable means," and businesses must honor revocation within 10 business days (Kelley Drye). Your workflow should update the CRM and suppress future texts when someone replies STOP.

n8n licensing for agencies and small businesses

n8n's license has conditions that matter for how you use it. Its docs now call it the "Community license (officially the Sustainable Use License)" (n8n License FAQ).

The license allows use "only for your own internal business purposes or for non-commercial or personal use," allows distribution only "free of charge for non-commercial purposes," and does not let you remove licensing notices. Files containing ".ee." fall under the separate n8n Enterprise License (Sustainable Use License).

For a small business automating its own lead follow-up, that is straightforward: internal business use is allowed.

For agencies, n8n's License FAQ is the key reference (n8n License FAQ):

• Allowed: building automations for clients on your own instance (or the client's) as long as clients cannot create or edit workflows; charging for workflow creation, setup and maintenance.
• Not allowed: hosting n8n as a service where clients build workflows; white-labeling n8n; letting external users build workflows through your UI, API, MCP server or AI agent.

The FAQ is n8n's interpretation of its own license. Embedding n8n inside a SaaS product requires a commercial Embed agreement, and edge cases should go to license@n8n.io.

Self-hosted vs n8n Cloud

Factor	n8n Cloud	Self-hosted
Setup	Sign up and build	Docker Compose, one-line script, cloud provider templates, or npm (deprecated from n8n 3.0)
Maintenance	Handled by n8n	You handle updates, database, security and monitoring
Pricing model	Plans by monthly executions	Your server and staff time
Data control	Hosted by n8n	Stays on your infrastructure
Best for	Teams without in-house ops	Teams with someone to own patches, backups and PII

Hosting options from the n8n hosting docs.

n8n Cloud pricing, shown in euros on annual billing as of October 10, 2026: Starter at €20 per month (2,500 executions), Pro at €50 per month (10,000), Business at €667 per month (40,000, self-hosted), and Enterprise at custom pricing. One execution is one full workflow run regardless of how many steps it has, and each webhook trigger counts as one (n8n pricing). Pricing may differ by region and currency, so check the page for your location.

Because each lead submission is one execution of the main workflow, you can estimate volume from your monthly lead count plus any scheduled or follow-up workflows.

SMS compliance: A2P 10DLC and consent

Texting leads is where DIY lead automation often runs into compliance trouble. Two separate requirements apply: TCPA consent (the checkbox in Stage 1 and revocation handling in Stage 8; see our AI voice agent guide for the federal consent rules) and carrier registration.

What A2P 10DLC requires

A2P 10DLC applies to anyone sending SMS or MMS from a US 10-digit long code. You register a Brand and a Campaign, and the campaign describes how you collect opt-in and how opt-out and help work. Standard brands need a tax ID (EIN). Sole Proprietor brands get one campaign and about 1,000 message segments per day to T-Mobile; Low-Volume Standard brands get about 2,000 per day to T-Mobile (Twilio A2P 10DLC docs, modified July 7, 2026).

Skipping this is not an option. Twilio blocks US-bound messages from +1 10DLC numbers that are not linked to an approved campaign (error 30034). Blocking began after August 31, 2023, and blocked messages are still billed (Twilio error 30034). For current registration and carrier fees, check Twilio's pricing page rather than relying on figures in blog posts.

Consent rules carriers check

Under the CTIA Messaging Principles as applied by Twilio, consent cannot be transferred between businesses, lists cannot be bought or shared, and STOP must be honored (Twilio Support). Your form wording from Stage 1 and your sample messages in the campaign registration should match what you actually send.

When this workflow is NOT the right choice

• Your lead volume is tiny. If you get a few leads a week and answer them yourself within minutes, a full workflow adds maintenance without much gain.
• Nobody will own errors. Every automation fails eventually. If no one watches alerts and handles unclassifiable leads, leads will silently drop.
• You cannot maintain a self-hosted server. Self-hosting means you own patches, backups and the security of personal data. If that is not realistic, use Cloud or a managed setup.
• You want to resell n8n as your own platform. White-labeling and letting clients build workflows on your instance are not permitted according to n8n's License FAQ.
• You have not sorted consent and registration. Do not turn on SMS until consent capture, logging and 10DLC approval are in place.

If you also send conversion events back to ad platforms, the same webhook data can feed your server-side tracking; see our Meta Conversions API setup guide.

The takeaway

A complete n8n lead workflow does more than pass form data to a CRM. It secures the webhook, responds immediately, cleans and qualifies the lead, sends a consented first message within about a minute, moves the lead to a booking, and tells a human when something fails. Get the licensing, hosting and SMS compliance pieces right first, and the automation becomes a dependable part of your sales process.

If you want this built and maintained for you, Robustech designs AI automation and lead follow-up systems that you own.
